ElliptiGO® eMSUB Electric Bike

ElliptiGO® eMSUB Electric Bike

$3,299.00

5 Reviews

OWN THE TRAILS

Charge up hills, bomb down trails, and explore the great outdoors with the ElliptiGO Electric Mountain Stand-Up Bike (eMSUB). Knobby 27.5” tires grip the terrain,... Read More the 100mm front suspension smooths your ride, and the powerful 500-watt motor propels you faster and farther than ever before. You’ll get an incredible workout — on your terms, as you adjust the level of pedal assist to suit the landscape and your goals. Hit speeds of up to 20 mph and distances of up to 50 miles* as you reach new heights on every off-road adventure.

— Knobby 27.5” tires for varied terrain
— 100 mm front suspension to smooth out ruts and bumps
— High-performance disc brakes for stopping power in all conditions
Integrated Electric Assist technology with 500-watt motor; 48-volt, 14-amp battery; pedal assist sensor; controller; dual power cutoff brake levers; throttle; display and battery charger

*Range is 20 to 50 miles, dependent on terrain, ride conditions and amount of power applied.

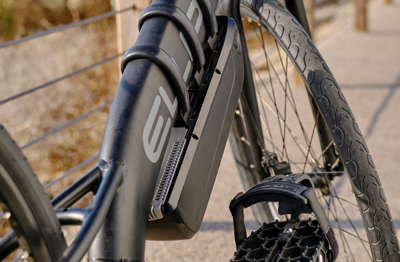

The eMSUB Electric Bike will have the battery shipped separately from the bike. For more details, including instructions on how to install the battery, click here.

Using the eMSUB Electric Bike on the Fluid 365 trainer is NOT recommended due to fit issues with the motor cable and the size of the axle nuts.

300lb Weight Limit | Ships Almost Fully-Assembled | Easy to Assemble.



Please allow 5-7 business days for shipping in order to give us time to build, repack, and ship your bike.

QTY

Recommended Accessories

  • Enthusiast Bundle - MSUB
  • Road Repair Kit - MSUB
  • 120mm Kinekt Suspension Stem with Handlebar Shim - All Models
  • Toe Cages - MSUB, RSUB, SUB
  • Front and Rear Fender Set - RSUB
  • 30-Day Money-Back Guarantee
  • Financing Available
  • Easy Assembly

SPECIFICATIONS

Wheelbase 47.2” (120cm)
Total Length 74.8” (190cm)
Weight 34.6 lbs (15.7 kg)
Operating Height 45.3-51.6” (115-131cm)
Storing Height (with front wheel) 45.3” (115 cm) with steering extender
Storing Height (no front wheel) 24.5” (62 cm) without steering extender
Crank Length 5.9” (150mm)
Gears/Speeds 10
Total Gear Range 382%
Avg Gear Step 16%
Gear Ratio Range .93 – 3.5
Gear Inch Range 26 – 99
Stride Length 11.8” (30 cm)
Stride Height 11.8” (30 cm)





COMPONENTS

Front and Rear Brakes Mechanical disc brakes
Grips Clamp on anti-rotation, with ergonomic shelf
Cranks Custom forged aluminum
Frame 6061-T6 aluminum
Fork Air suspension fork, 100mm travel, variable damping
Brake Levers Two finger levers
Propulsion System Circular drive
Drive Arms N/A
Track System N/A
Chainring 39T narrow/wide 130 BCD
Cassette 10-speed 11-42 tooth range
Bottom Bracket Oversized M48, ISIS spline, sealed bearings
Sprocket N/A – Uses cassette
Hub Alloy freewheel hub
Steering Column Adjustable height index locking
Steering Extender Chro-moly steel, anti-rotation indexing
Headset 1.5” threadless
Kickstand Single leg, forged aluminum kickstand
Tires Kenda Honey Badger, 27.5” x 2.2” 60 TPI, 50-psi
Handlebar Aluminum. MTB flat bar, 31.8mm dia x 720mm wide
Stem Forged aluminum, 31.8mm dia bar, 80mm x 7 deg
Shifter 10-speed trigger
Front Wheel Schrader, 27.5” aluminum, tubeless ready, 32-spoke
Rear Wheel Schrader, 27.5” aluminum, tubeless ready, 32-spoke







PERFORMANCE

Climbing Activity Climb steep hills up to 20-30% grade
Recommended Riding Terrain Off road, road, flat and hilly
Workout Resistance Selection 10 different levels of resistance. 382% total resistance range. 16% difference between levels
