ElliptiGO® MSUB

ElliptiGO® MSUB



121 Reviews


Ready for an exhilarating off-road adventure? The Mountain Stand Up Bike takes stand up cyclists where they’ve never gone before. From dirt trails to urban... Read More landscapes, this cardio-chameleon allows riders of all levels to customize where they GO. Accept any challenge with knobby, 27.5” tires, smooth, 100mm front suspension and high-performance disc brakes. New adventures await with the comfortable, fun and hyper-efficient workout experience you expect from ElliptiGO bikes. Whatever your mountain, climb it with the ElliptiGO MSUB!

300lb Weight Limit | Ships Almost Fully-Assembled | Easy to Assemble.

Note: MSUB tires need to be swapped out in order to use the Fluid 365 Stationary Trainer. Using the MSUB e-conversion kit is not recommended on the Fluid 365 trainer due to fit issues with the motor cable and the size of the axle nuts.


Recommended Accessories

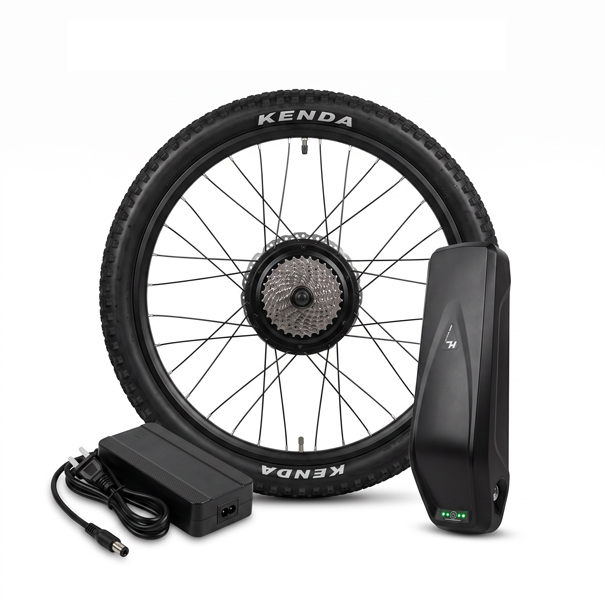

  • Electric Bike Conversion Kit - MSUB
  • Fluid 365 Stationary Trainer
  • Accessory Bundle for MSUB
  • Toe Cages - MSUB, RSUB, SUB
  • Custom ElliptiGO Bike Cover – All Models
  • 30-Day Money-Back Guarantee
  • Financing Available
  • Easy Assembly


Wheelbase 47.2” (120cm)
Total Length 74.8” (190cm)
Weight 34.6 lbs (15.7 kg)
Operating Height 45.3-51.6” (115-131cm)
Storing Height (with front wheel) 45.3” (115 cm) with steering extender
Storing Height (no front wheel) 24.5” (62 cm) without steering extender
Crank Length 5.9” (150mm)
Gears/Speeds 10
Total Gear Range 382%
Avg Gear Step 16%
Gear Ratio Range .93 – 3.5
Gear Inch Range 26 – 99
Stride Length 11.8” (30 cm)
Stride Height 11.8” (30 cm)




Front and Rear Brakes Mechanical disc brakes
Grips Clamp on anti-rotation, with ergonomic shelf
Cranks Custom forged aluminum
Frame 6061-T6 aluminum
Fork Air suspension fork, 100mm travel, variable damping
Brake Levers Two finger levers
Propulsion System Circular drive
Drive Arms N/A
Track System N/A
Chainring 42T narrow/wide 130 BCD
Cassette 10-speed 11-42 tooth range
Bottom Bracket Oversized M48, ISIS spline, sealed bearings
Sprocket N/A – Uses cassette
Hub Alloy freewheel hub
Steering Column Adjustable height index locking
Steering Extender Chro-moly steel, anti-rotation indexing
Headset 1.5” threadless
Kickstand Single leg, forged aluminum kickstand
Tires Kenda Honey Badger, 27.5” x 2.2” 60 TPI, 50-psi
Handlebar Aluminum. MTB flat bar, 31.8mm dia x 720mm wide
Stem Forged aluminum, 31.8mm dia bar, 80mm x 7 deg
Shifter 10-speed trigger
Front Wheel Schrader, 27.5” aluminum, tubeless ready, 32-spoke
Rear Wheel Schrader, 27.5” aluminum, tubeless ready, 32-spoke





Climbing Activity Climb steep hills up to 20-30% grade
Recommended Riding Terrain Off road, road, flat and hilly
Workout Resistance Selection 10 different levels of resistance. 382% total resistance range. 16% difference between levels

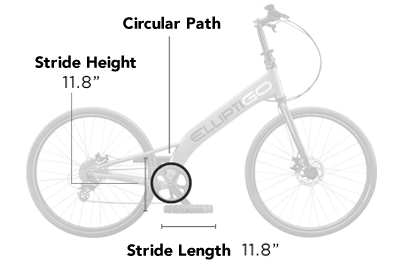

RSUB and MSUB bikes have a Circular Path

Pedaling Motion

Enjoy a familiar cycling-like, circular motion alongside ElliptiGO’s signature benefits.

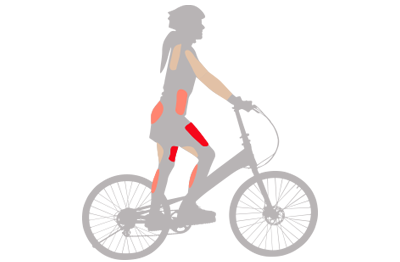

RSUB Muscles

Muscle Activation

Our stand up bike models provide a full-body workout that especially activates the quadriceps.


MSUB Terrain Icon

All-Terrain Riding

This bike is suited for riding in areas that feature flat or extremely hilly off-road or paved paths.



MSUB rider Lyn on trails

Lyn lost more than 100 pounds by riding her ElliptiGO every day for more than 500 days in a row – a feat now indelibly inked into ElliptiGO lore as “The GO Streak.” Read More

MSUB Nikki Shoemaker

Nikki had two neck surgeries after a car accident that left her unable to really exercise. Now she rides every day – and her MSUB makes her feel like a kid again. Read More

Jim Hansen headshot post race

Jim was a longtime runner who was able to return to running after riding ElliptiGOs. Now he loves taking his MSUB off the beaten path in New England. Read More

Long-Stride rider Didi S

Didi competed in track in college, but over the years let life get in the way of staying fit. Since finding ElliptiGO she has ridden 21 century rides and found her new love. Read More

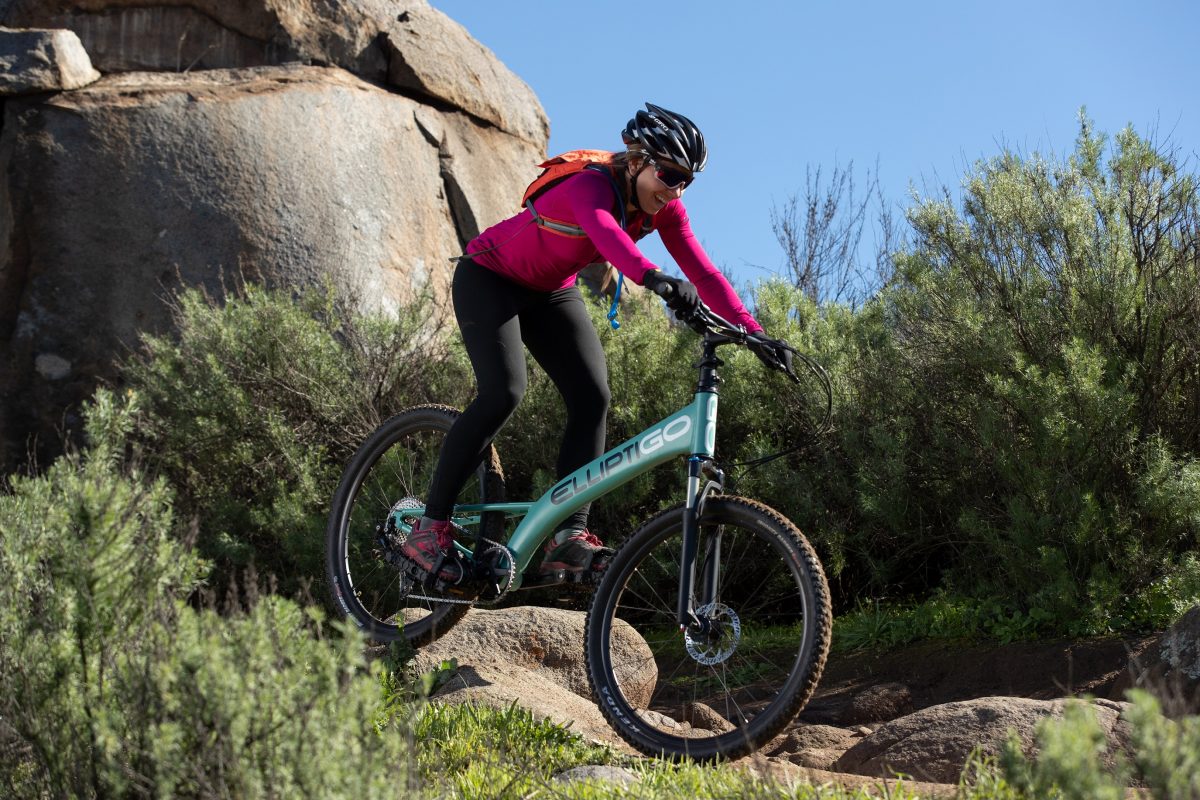

MSUB rider on technical trails
